• Incorporating multi-material to achieve both portability and durability
• The world’s first 10× optical zoom telephoto lens with a tele end of 600mm
• Dust- and splash-proof structure with the water- and oil-repellent coating on the front lens
• Tripod socket with high usability, 90° click stops and Replaceable lens foot
• Manual Override (MO) capable of switching two full-time manual modes
• Nikon electromagnetic diaphragm mechanism included

Product Lines | Sports |
---|---|
Construction | 25 Elements in 19 Groups |
Lens Type | Telephoto |
Sensor Size | Full Frame |
Angle of view | 39.6º - 4.1º |
Number of diaphragm blades | 9 (Rounded Diaphragm) |
Minimum aperture | F22-F32 |
Minimum focusing distance | 60 cm - 260 cm |
Maximum magnification ratio | 1:3.3 |
Dimensions (diameter x length) | Canon EF ⌀ 120.4 mm x 268.9 mm |
Weight (g) | Canon EF 2700 g |
Filter diameter | 105mm |
Edition number | S018 |
Supplied Accessories | Lens Hood LH1144-01, Front Cover LC740E, Front Cap LCF-105mm III, Rear Cap LCR II, Tripod Socket TS-101, Case LS-730EOL |
Accessories | Tele Converter TC-1401, Tele Converter TC-2001, Tripod Socket TS-81, USB-dock UD-01, Mount Converter MC-11, Mount Converter MC-21, WR Ceramic Protector FIlter 105mm, WR Protector Filter 105mm, WR C-PL FIlter 105mm |
EAN-code | Canon EF 085126730543 |
HSM - Hyper-Sonic Motor
DG - compatible with both full frame and APS-c size sensor cameras
* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

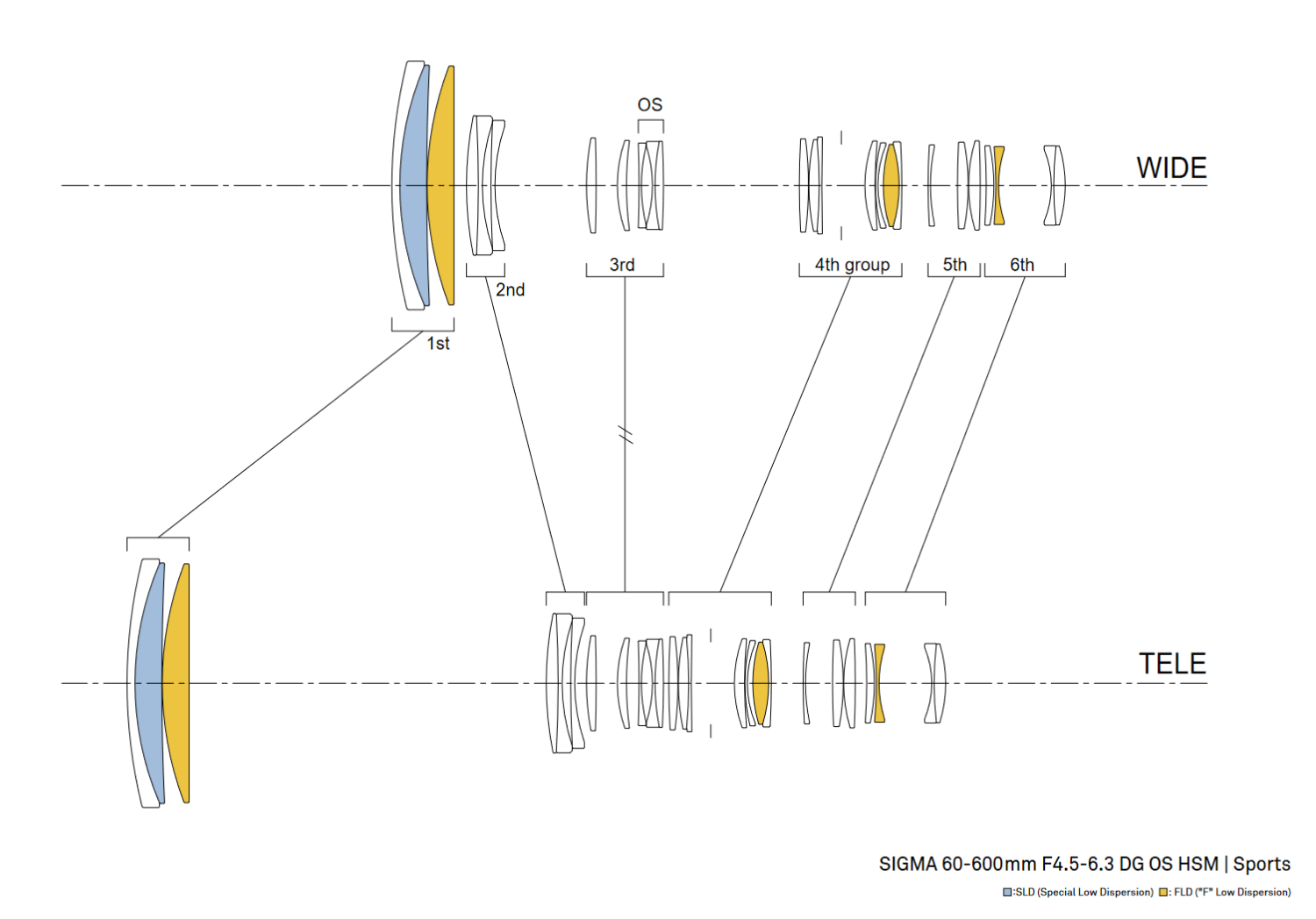

Lens Construction

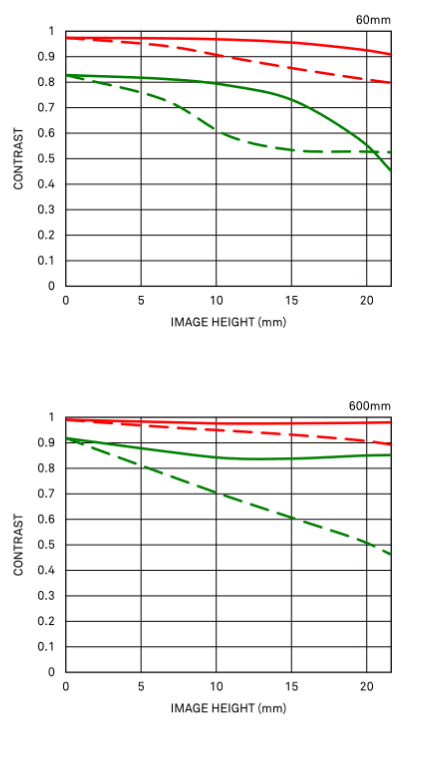

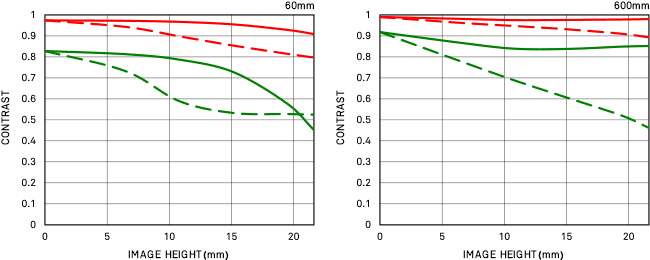

Geometrical MTF Chart

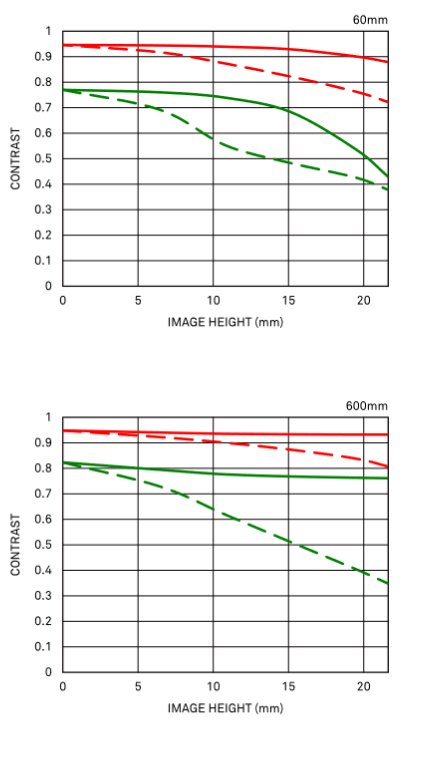

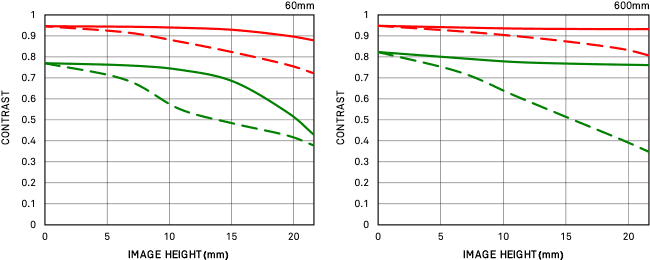

Diffraction MTF Chart
