Model no
32M

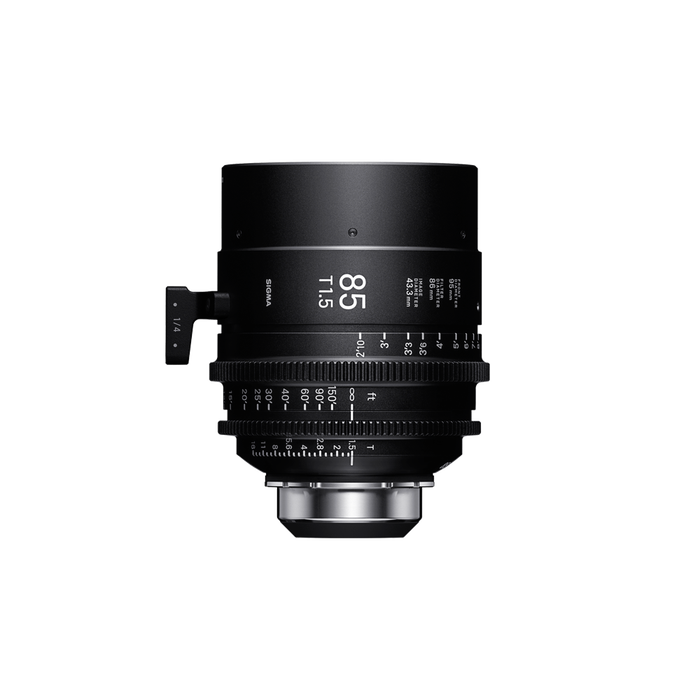

85MM T1.5 FF

From 46 400 SEK

• 180º focus throw
• Will be available in Canon, Sony E and PL /i Mount
• Resolution matching up to 8K
• Standardized essentials: Gear Position, Front Diameter

Few in Stock Few in Stock

Lineup

Wide focal length coverage
The lineup covers everything from wide angle to telephoto. Produce an entire work with SIGMA lenses alone.

Compatibility
Compatibility has been confirmed with each brand of cinema cameras.

Lenses for both S35 and full-frame
The High Speed Zoom Line is compatible with Super35, the image size standard used by typical digital cinema cameras, while the FF High Speed Prime Line and FF Zoom Line are compatible with a full-frame image circle.

Strong high-speed lens lineup
T1.5 or T2 is available in prime lenses, while T2 is available throughout the zoom range in zoom lenses. These options enable cinematographers to realize a wide range of expressive goals.


Image Quality

Inspecting each and every lens
There are three requirements for outstanding lenses: fine design, precise manufacturing and inspection that ensures compliance with all specifications. SIGMA lenses are born of outstanding design concepts and excellent manufacturing technology, but they are not complete until they undergo their uncompromising lens performance evaluation. SIGMA has developed their own A1 proprietary Modulation Transfer Function (MTF) measuring system using 46-megapixel Foveon direct image sensors. Even previously undetectable high-frequency details are now within the scope of their quality control inspections. Each and every lens is checked before shipping. Thanks to the ultra-high resolution sensors, high- performance shooting is assured.

Minimization of flare and ghosting
Computer-based ray tracing has been used from the design stage onward to minimize flare and ghosting and enhance contrast in backlit conditions. Ghosting has also been checked at every prototype stage, with its causes identified, assessed, and eliminated.

Sharpness combined with outstanding bokeh effect
To fulfill the high demands for image quality in still photography, SIGMA has solved a wide range of issues. The benefit of these efforts can now be enjoyed in cine lenses as well.

Color balance standardized across the lineup
All of the lenses in the lineup are designed to comply with SIGMA’s CCI standard. Standardized color balance makes color correction a snap.

6K-8K class resolution
The lineup features the same optical system that delivers 50-megapixel or higher resolution in still photography. These lenses are therefore ready for higher-resolution shooting and are ideal for chroma keying as well.


Build Quality

Lightweight and compact
Leveraging the high-precision, high-efficiency mass production technologies developed for its still camera lenses, SIGMA has made extremely lightweight and compact cine lenses a reality. Featuring all functions essential to cinematography, these lenses keep weight and size to a minimum, while their specification is optimized for enhanced durability. The end result is a combination of performance and compact design at the highest level.

Dust and Splash Resistant Structure*
The lineup features the same dust and splash resistant structure* as the SIGMA 150-600mm F5-6.3 DG OS HSM|Sports. With each ring and mount specially sealed to prevent water and dust from entering, this lens is ready for use in tough conditions. The unusually robust specification of the lineup allows the user to concentrate on shooting while significantly reducing the burden of maintenance.

* Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

100% metal body
The body is made completely of metal to stand up to tough professional use over the long term.

Luminous paint for enhanced visibility
The specification, gradation baseline, and lens change indications all feature luminous paint to aid in changing the lens in the dark and other tasks. Moreover, new FULLY LUMINOUS versions of the lenses feature the above plus rings whose numbers and gradations are finished with luminous paint.

Laser engraving for enhanced durability
Information on rings and elsewhere is laser-engraved for use over the long term. In addition, tape may be placed on gradations without fear of stripping away paint when it is removed.






Front

82mm filter size* (1)
The filter size is standardized at 82mm, allowing users to use the same size of ND filter on different lenses.

*Certain lens models are not compatible with 82mm filters.

95mm front diameter (2)
The front diameter is 95mm, similar to that of other cine lenses and compatible with matte boxes. Compared to lenses in the same class, SIGMA’s cine lenses are more lightweight and compact






Ring

Standardized gear positions (3), (4), (5)
The positions of the gears in each ring are standardized, eliminating the need to adjust the follow focus, motor unit, or accessories even when the lens changes.

0.8M gear pitch (3), (4), (5)
Each lens has a 0.8M gear pitch, which is the standard for cine lenses, ensuring compatibility with existing accessories.

Silent ring stoppers (3), (4), (5)
The stopper of each ring incorporates a damper made of a special resin, resulting in silent operation. While offering a satisfying lock feel, this feature eliminates any metallic sounds, allowing the user to shoot with confidence in a quiet area.

180° focus rotational angle (3)
At 180°, the rotational angle of the focus ring is more than double that of a still camera lens, making possible extremely high-precision focusing. SIGMA has also optimized the cam for cine lenses for even easier long distance focusing.

160° zoom rotational angle (4)
At 160°, the rotational angle of the zoom ring is more than double that of a still camera lens, making possible extremely high-precision zooming.

Iris with full manual control (5)
Featuring manual control capability, the iris ring offers smooth control without clicks. The T-stop display, which is standard in cine lenses, contributes to high-precision exposures. Just like a high-end cine lens, the rotational angle of the iris ring is 60°.

Linear iris ring (5)
The linear iris ring gives users the same rotational angle per T-stop for direct, intuitive control.

Selectable focus ring with feet or meter graduations
Based on user needs, a focus ring with either feet or meter graduations may be selected. For a small charge, SIGMA can also convert the ring from one type to the other after purchase.






Mount

Mount Conversion Service
Seeing lenses as valuable assets, SIGMA now makes the Mount Conversion Service available for its new cine lenses. Successfully implemented for their still photography camera lenses, this service allows users to convert their lenses to and from EF and E-mounts (charges apply). If the camera system changes, it is possible to simply convert the mount system to continue using the high-performance SIGMA lenses.

Note: The Mount Conversion Service is not available for PL mount lenses.

PL, EF and E
Available lens mounts are the Canon EF mount, which is used on the majority of digital cinema cameras, and the Sony E-mount, which is used on the Sony FS series. All lenses in the lineup may also be used on still cameras with the compatible mount for outstanding DSLR movie shooting.

*24-35mm T2.2 FF is not available in PL mount.

Mount with electronic contacts (6)
The mount with electronic contacts allows the lens to communicate important information to the body (focal length, shooting distance, aperture etc.).

Enhanced EF mount* (6)
The hole for the stopper pin has been strengthened with a separate part to minimize loosening over time and enhance long-term use.

*Only applicable for Canon EF mount

Specifications
More Information
Focal lenght85 mm
Aperture (T)T1.5 to T16
Number of diaphragm blades9 (Rounded Diaphragm)
Minimum Focusing Distance0.85 m / 2'10"
Image coverageFF ⌀43.3
Front diameter95 mm
Filter diameter82 mm
Length

Canon EF-mount
Sony E-mount
PL mount

126.9 mm
152.9 mm
118.9 mm

Weight

Canon EF-mount
Sony E-mount
PL mount
PL mount (/i Technology compatible)

1,425 g
1,470 g
1,345 g
1,335 g

FF23.9°
S3516.5°
APS-C15.9°
Edition number017

1 Close focus distance is measured from the image plane
2 Front to EF mount flange
3 Front to E-mount flange
4 Front to PL mount flange
5 Without lens support foot
6 Horizontal angle of view for a full-frame camera aperture (aspect ratio 1:1.5, dimensions 36mm × 24mm / 1.42″ × 0.94″)
7 Horizontal angle of view for a super 35 digital cinema camera aperture (aspect ratio 1:1.8, dimensions 24.6mm × 13.8mm / 0.97″ × 0.54″)
8 Horizontal angle of view for an APS-C camera aperture (aspect ratio 1:1.5, dimensions 23.7mm × 15.7mm / 0.93″ × 0.62″) The specifications are subject to change without notice.
9 The three-digit code on the surface of the lens is to indicate the year the lens was first released.(Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)
