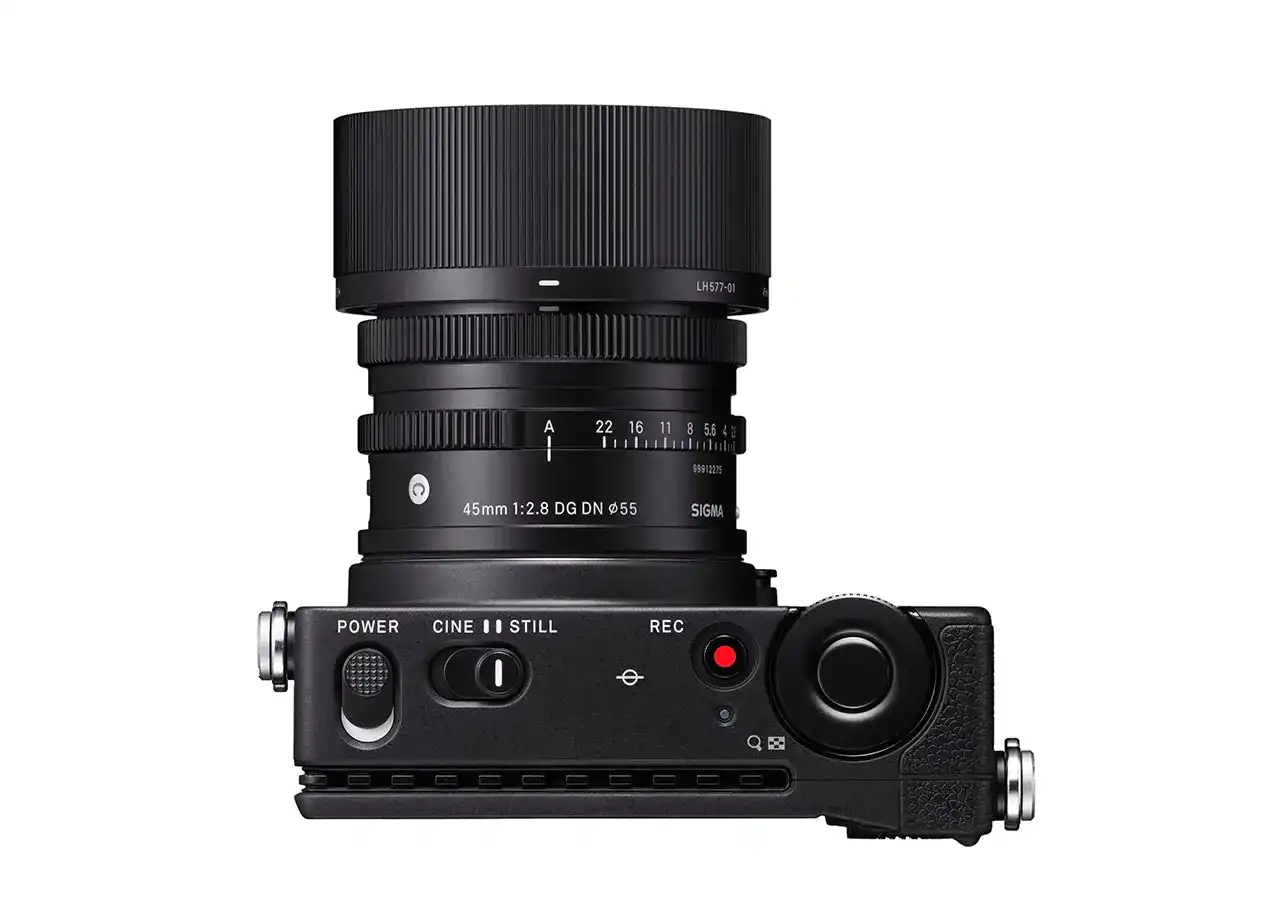

fp - Mirrorless Camera + 45MM F/2.8
DG DN (C)

25 290 SEK

fp - Mirrorless Camera + 45MM F/2.8 DG DN (C)

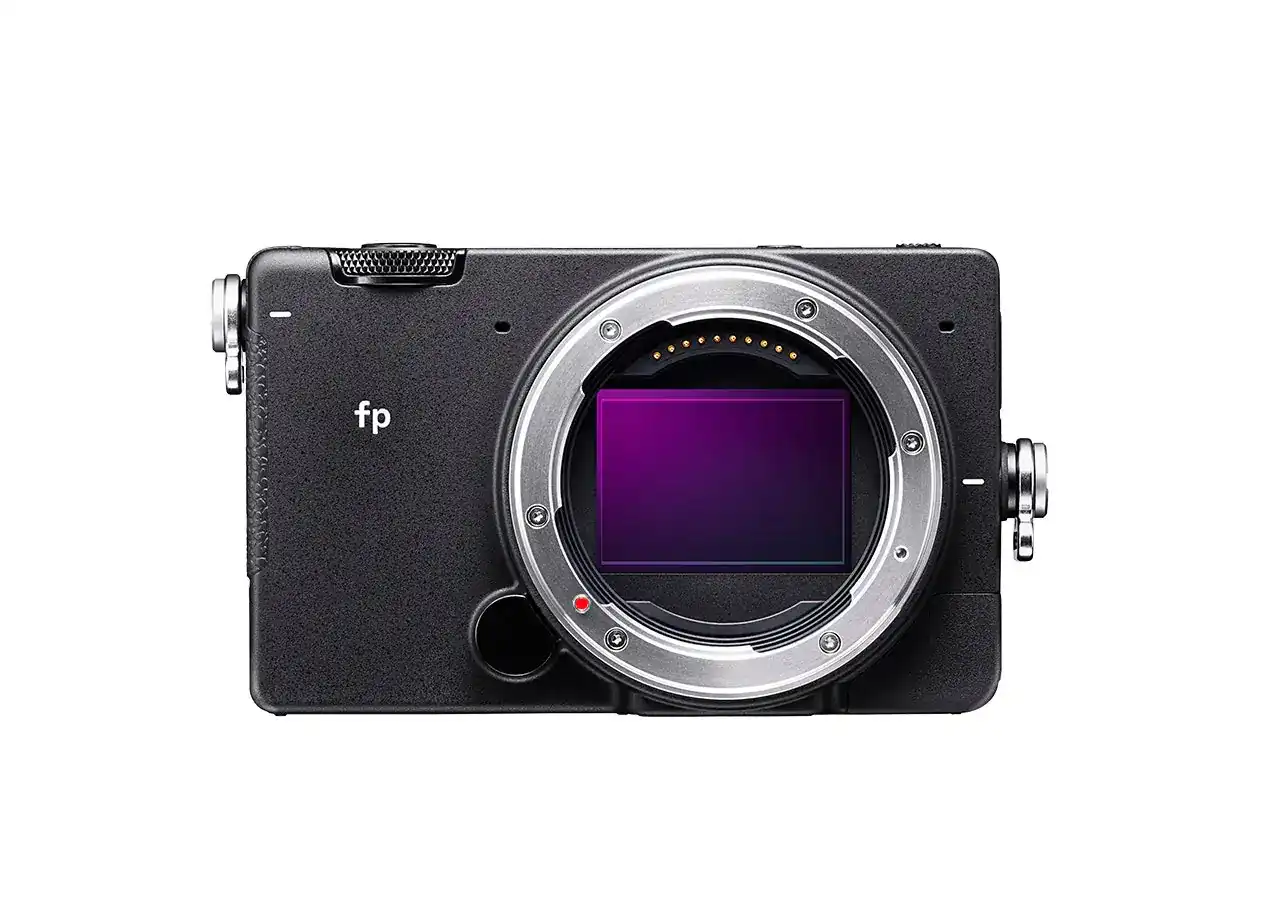

SIGMA fp

24,6 Megapixel, 35 mm full-frame sensor (back-illuminated)
Robust & lightweight aluminum body
Dust- and splash-proof structure
Easy set-up for WEB streaming and video conf. with USB-C cable
Supports UHD 4K/24, 25 & 30 fps and 12-bit Cinema DNG
Electronic image stabilization
Full-time electronic shutter
Face/Eye Detection AF
HDR Shooting

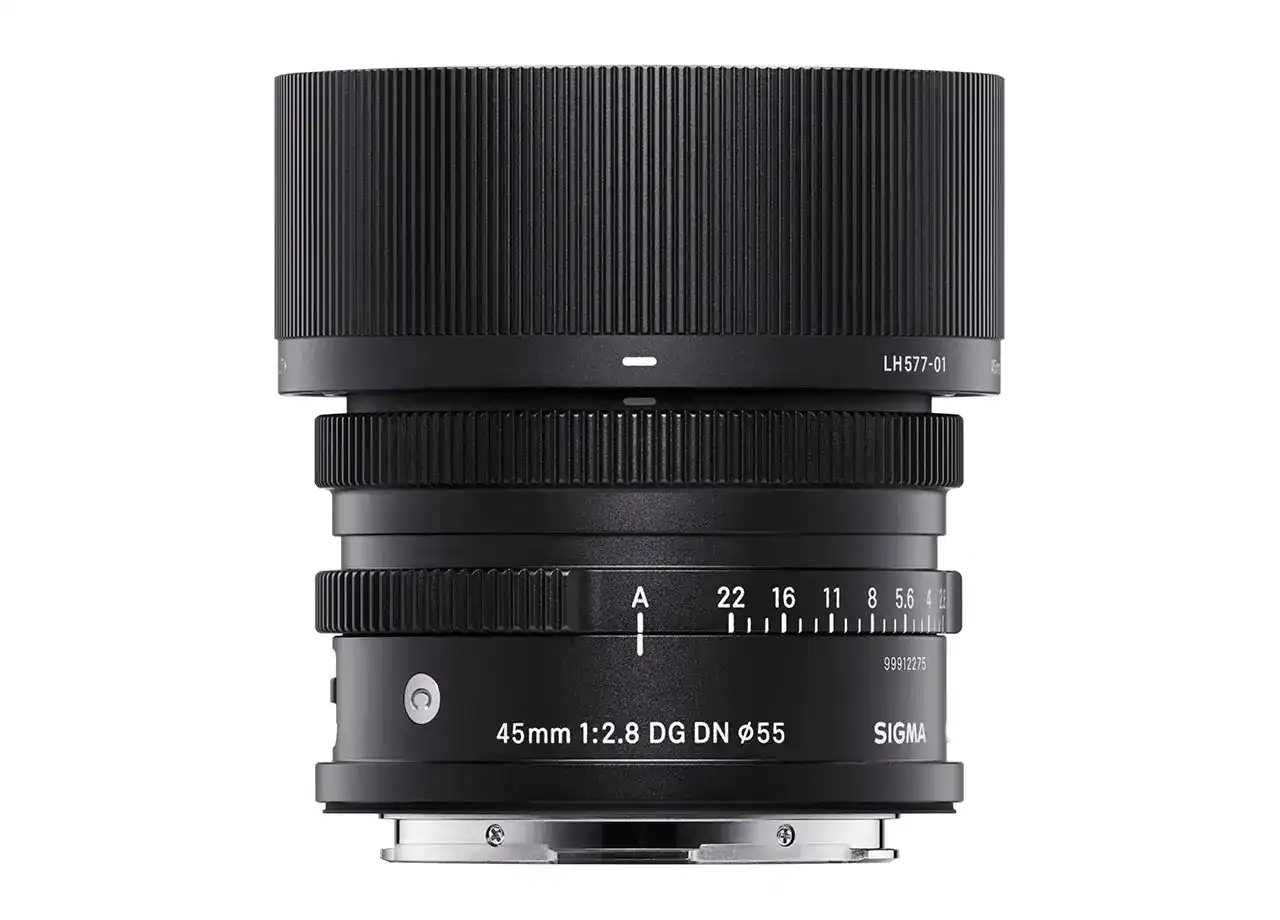

45mm F2.8 DG DN | Contemporary

Rugged build quality
Beautiful bokeh and rendering
Rounded diaphragm
Mount with dust and splash proof structure
Fast AF with full-time manual focus
Designed to minimize flare and ghosting
Compatible with Lens aberration correction

Buy from reseller

Specifications

Features

Mount		L-mount
Format Type		Interchangeable-lens Mirrorless Type Digital Camera
Storage Media		SD, SDHC, SDXC memory card (UHS-Ⅱ supported) , Portable SSD (USB 3.0 connection, USB bus power supported)
Lens Mount		L-mount
Sensor type		35 mm full-frame (35.9 mm x 23.9 mm) Back-illuminated Bayer CMOS sensor
Camera effective pixels / Total pixels		Approx. 24,6 MP (6072 x 4056) / Approx 25,3 MP (6104 x 4142)
Image sensor size		Full-frame (35.9 mm x 23.9 mm)
Aspect ratio		3:2
Color, filter system		RGB Primary color filter
Still Image File Format		Lossless compression RAW(DNG) data 12 bit,14 bit / JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible
Image aspect ratio		[21:9] / [16:9] / [3:2] / [A Size (√2:1)] / [4:3] / [7:6] / [1:1]
File size - RAW		High: 6000 x 4000 (3840 x 2560), Low: 3008 x 2000 (1920 x 1280)
JPEG file size		[21:9] HIGH : 6,000 x 2,576 (3,840 x 1,648) MED : 4,240 x 1,824 (2,736 x 1,168) LOW : 3,008 x 1,288 (1,920 x 824) [3:2] HIGH : 6,000 x 4,000 (3,840 x 2,560) MED : 4,240 x 2,832 (2,736 x 1,824) LOW : 3,008 x 2,000 (1,920 x 1,280) [4:3] HIGH ：5,344 x 4,000 (3,408 x 2,560) MED ：3,776 x 2,832 (2,416 x 1,824) LOW ：2,672 x 2,000 (1,712 x 1,280) [1:1] HIGH : 4,000×4,000 (2,560×2,560) MED : 2,832×2,832 (1,824×1,824) LOW : 2,000×2,000 (1,280×1,280) [16:9] HIGH : 6,000 x 3,376 (3,840 x 2,160) MED : 4,240 x 2,392 (2,736 x 1,536) LOW : 3,008 x 1,688 (1,920 x 1,080) [A Size (√2:1)] HIGH : 5,664 x 4,000 (3,616 x 2,560) MED : 4,000 x 2,832 (2,560 x 1,824) LOW : 2,832 x 2,000 (1,808 x 1,280) [7:6] HIGH : 4,960 x 4,000 (3,184 x 2,560) MED : 3,520 x 2,832 (2,272 x 1,824) LOW : 2,480 x 2,000 (1,584 x 1,280)
Color space		sRGB / Adobe RGB
Audio format		Linear PCM (2 ch 48 kHz/16 bit)
Recording pixels / Frame rate (Internal)		3,840 x 2,160 (UHD 4k) / 23.98p, 25p, 29.97p FHD (1,920 x 1,080) / 23.98p, 25p, 29.97p, 59.94p, 100p, 119.88p
Cinema DNG recording media limits (Internal)		SD card: UHS-II UHD 8bit under 25fps, FHD 12 bit under 60fps Portable SSD: UHD 12bit 30fps, FHD 12bit 100 fps or less, 10bit and 8bit 120fps or less* *When using our recommended recording media
Movie format (External)		HDMI Loop out “External recorder record: ATOMOS Ninja Inferno, Blackmagic Video Assist 4K supported HDMI RAW output “Externai recorder record: ATOMOS Ninja V, Blackmagic Video Assist 12G supported
Audio format (external)		Linear PCM (2 ch 48 kHz/16 bit)
File size / Frame rate (External)		4,096×2,160（DCI 4K） 12bit RAW 24fps 3,840×2,160 (UHD 4K) / 4:2:2 8bit 29.97p / 25p / 23.98p 1,920x1,080 (FHD) / 4:2:2 8bit 119.88p / 100p / 59.94p / 50p / 29.97p / 25p / 23.98p
AF System / Focus mode		Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus
AF Sensitivity Range / AF mode		-5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode
AF Lock (Focus)		Half-press the shutter button, or press the AEL button (setting change required)
Other Focus Functions		AF+MF, MF Magnification (Full Screen, PIP), MF Display, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification, Focus Ring Control (Non-linear, Linear)
Metering Mode		Evaluative, Spot, Center Weighted Average
Metering Range		-5 to 18 EV (50 mm F1.4:ISO 100)
Still Image Shooting Mode		(P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual
Movie Shooting Mode		(P) Program AE, (S) Shutter Angle/Speed Priority AE, (A) Aperture Priority AE, (M) Manual
ISO Sensitivity		ISO 100–25600, Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400
Exposure Compensation		±5 EV (in 1/3 stop increments) : ±3 EV at movie recording
AE Lock (Exposure Control)		Half-press the shutter button, or press the AEL button (setting change required)
Exposure Bracket		3 shots, 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)
Image Stabilization System		Electronic system
White balance Settings		12 types ( Auto, Auto[Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature[50K steps], Custom 1, Custom 2, Custom 3 )
Shutter Type		Electronic shutter
Shutter Speed		30 to 1/8,000 sec., Bulb up to 300 sec. * Up to 1/4,000 sec. when using electronic image stabilization
Drive Modes		Single Capture, Continuous, Self Timer, Interval Timer
Maximum number of shots		HIGH: 12 frames, MED: 12 frames, LOW: 24 frames
Monitor Type / Coverage		TFT color LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots , Electrostatic capacitance system touch panel / Approx. 100%
Flash Mode (External flash)		S-TTL Auto Exposure, Manual Flash, Wireless Flash, Multi Flash
Exposure control (External flash)		Max. ±3 EV in 1/3EV step increments
Flash Tuning Speed (External flash)		Max. 1/30 sec. * 1/15 sec. or less at 14 bit RAW
External Flash Support		Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted. * S-TTL, Wireless support, X-sync.
Color mode		16 types (Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Warm Gold, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off )
Other Function		ATOMOS Ninja V+, ATOMOS Shogun CONNECT Available when the ATOMOS CONNECT is mounted.
Built-in Microphone / Speaker		Stereo Microphone, Monaural Speaker
Display Language		English / Japanese / Norwegian / Swedish / Danish / Finnish / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese
USB		USB3.1 GEN1 Type C
HDMI		Type D (Ver.1.4)
Release Terminal		Also used as an external microphone terminal
External Microphone		Φ3.5 mm stereo mini jack (Plug-in power support)
Headphone output		Φ3.5 mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)
Flash-synchro Terminal		Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)
Dust- & splash-proof structure		Provided *Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
Power		Li-ion Battery Pack BP-51 *USB power supply available (when the power is turned off)
Still images		Approx. 280 images
Movie \| continuous recording		Approx. 70 min.
Exposure Control	Weight (g)	422 g / 14.9 oz.(including battery and SD card), 370 g / 13.0 oz.(Camera body only)
Operating Temperature		0 ～ +40℃
Operating Humidity		85 % or less (non-condensing)
Accessories		Li-ion Battery Pack BP-51, Strap, Strap Holder, USB AC Adapter UAC-11, USB Cable (A-C) SUC-11, HOT SHOE UNIT HU-11, Body Cap, Instruction Manual, Warranty, Warranty Sticker
Optional Accessories		HAND GRIP HG-11 LARGE, HAND GRIP HG-21, LCD VIEWFINDER LVF-11, ELECTRONIC VIEWFINDER EVF-11, BASE PLATE BPL-11, CABLE RELEASE CR-41, BASE GRIP BG-11, DC CONNECTOR CN-21, BATTERY CHARGER BC-71, AC ADAPTER SAC-7P, STRAP HOLDER SH-1 (2pcs)
EAN-code
EAN		085126937317
Specifications Info		* All figures calculated by L-Mount. Note: The L-Mount Trademark is a registered Trademark of Leica Camera AG. About Product Name: Product name includes "DG" when the lens is designed to deliver the ultimate in performance on cameras with full-frame sensors, and "DN" when the lens design is optimized for mirrorless cameras with the short flange focal length.

Pocketable Full-frame│ Impressive portability and power

The “smallest and lightest body possible” with which one can express their creative ideas whenever they want, combined with a “full-frame sensor” that is suitable for serious occasions without compromising on image quality, and “superb build quality” that makes the camera the perfect linchpin of a high-performance lens system.

Dimensions (W x H x D)：112.6 x 69.9 x 45.3 mm / 4.4 x 2.8 x 1.8 in.
Weight：370 g / 13.0 oz.(Camera body only)
Image Sensor：35 mm full-frame / Approx. 24.6 MP

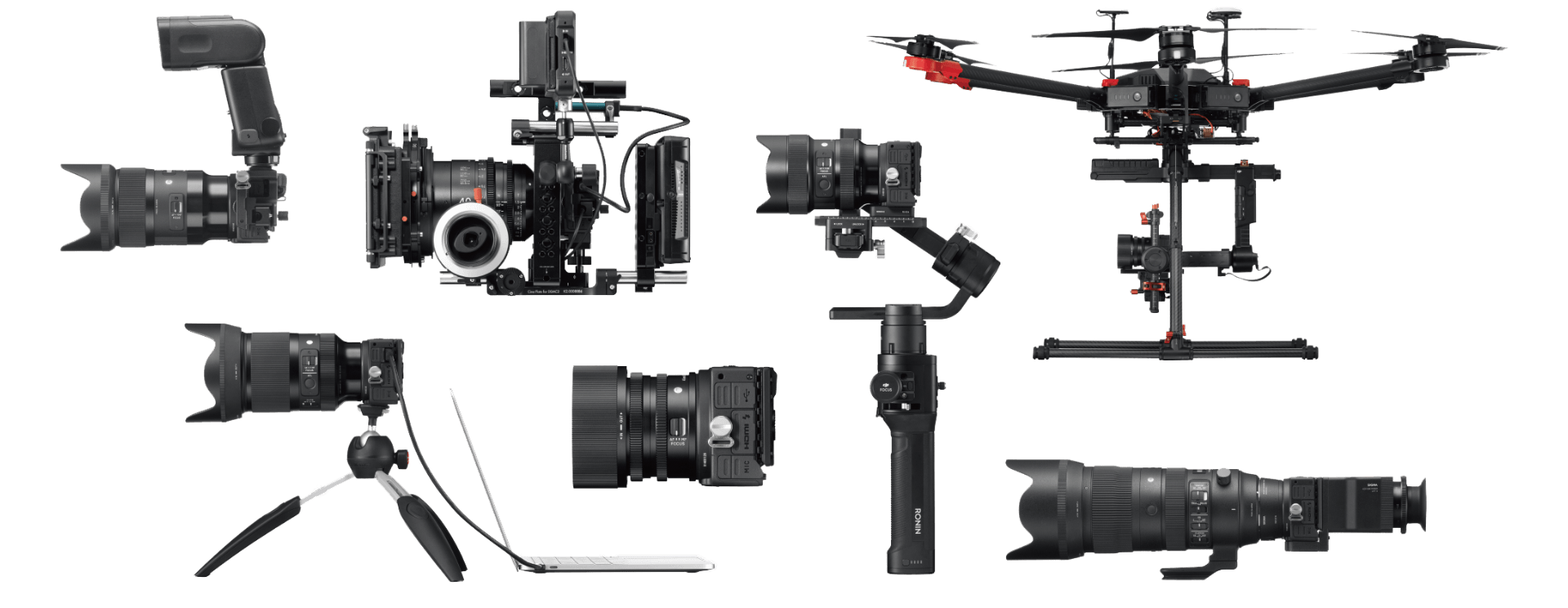

Scalable│ Versatile scalability

An “open system” that allows one to pair the camera with not only Sigma lenses but also other lenses and accessories, whether from Sigma or other brands, using a variety of attachments, complete with “ultimate versatility and scalability” that makes the camera adaptable to any scenes.

Seamless│ Full-fledged, liberating shooting functions

A “highly intuitive UI” that allows one to move between full-fledged still and video shooting modes with just one finger, making for a “seamless and truly creative tool” that goes beyond style and genre differences.

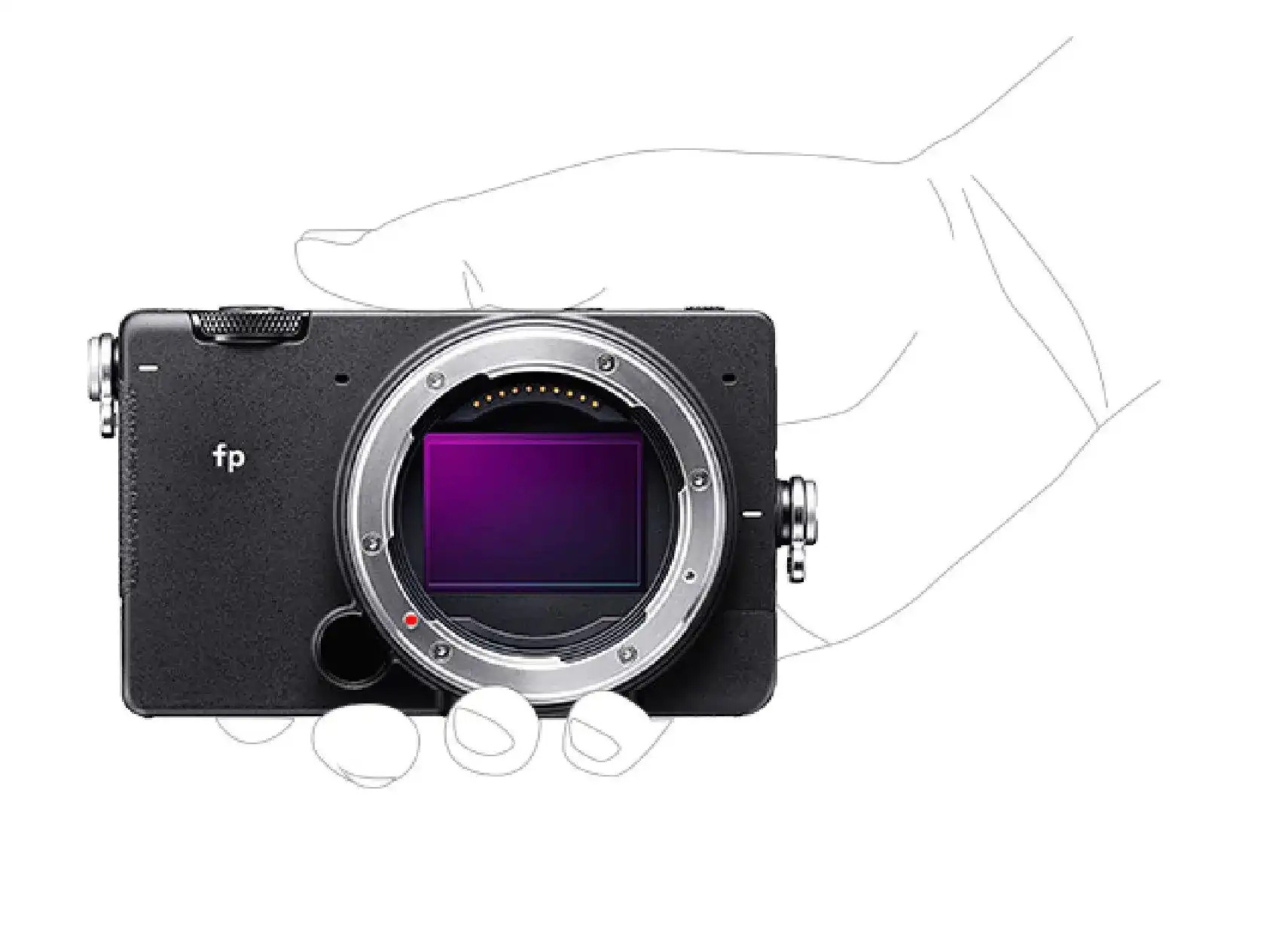

Carry all the amazing things in your pocket.

The world’s smallest and lightest full-frame mirrorless camera.*

With overall dimension of 112.6 x 69.9 x 45.3mm and body weight of 370g and 375g for the fp and the fp L, respectively, the Sigma fp family is the world’s smallest and lightest* full-frame mirrorless cameras. They are small enough to take for casual use, so you can enjoy the full-frame image quality for your everyday snaps.

*As of March 2021, by Sigma

Abundant of choices for every occasion.

L-Mount lenses.

The Sigma fp series uses the L-Mount*, characterized by a short flange focal length, large diameter, and superior durability. For interchangeable lenses, in addition to the wide-ranging choice of Sigma lenses, other manufacturers’ lenses can also be an option through the L-Mount Alliance with Leica Camera AG and Panasonic Corporation. With the Sigma MOUNT CONVERTER MC-21, Sigma SA mount and Sigma’s CANON EF mount lenses can be used, making the best out of one’s lens investment.

*The L-Mount Trademark is a registered Trademark of Leica Camera AG.

Camera Compatibility

Film like a pro.

Supporting 12bit CinemaDNG recording
Supporting Blackmagic RAW and ProRes RAW HDMI outputs as standard

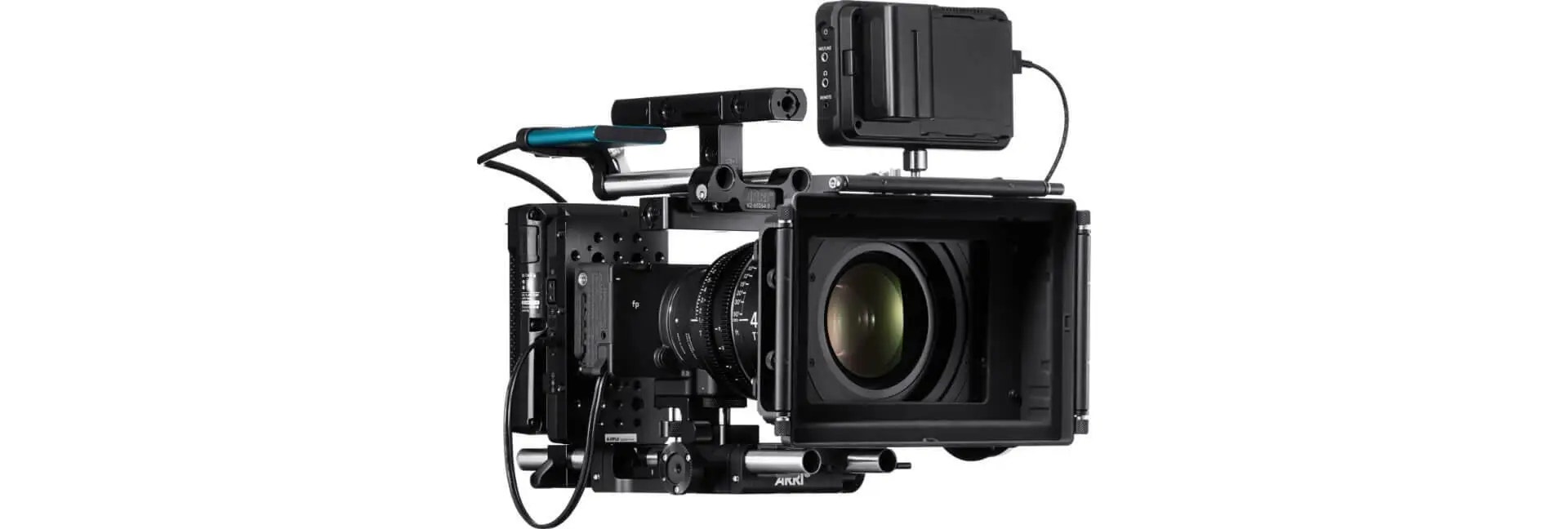

Professional video interface

For raw video data, the Sigma fp series supports 12-bit CinemaDNG external recording. With 4K UHD/24fps recording, it produces video data that can be used even in filmmaking. It also supports Blackmagic RAW and ProRes RAW over HDMI recording, so you can choose one according to your workflow.
For the operation system, the Sigma fp series features a dedicated interface that supports commonly used cinema cameras, which means it can be taken straight to video production settings.

Make your communication more engaging than ever.

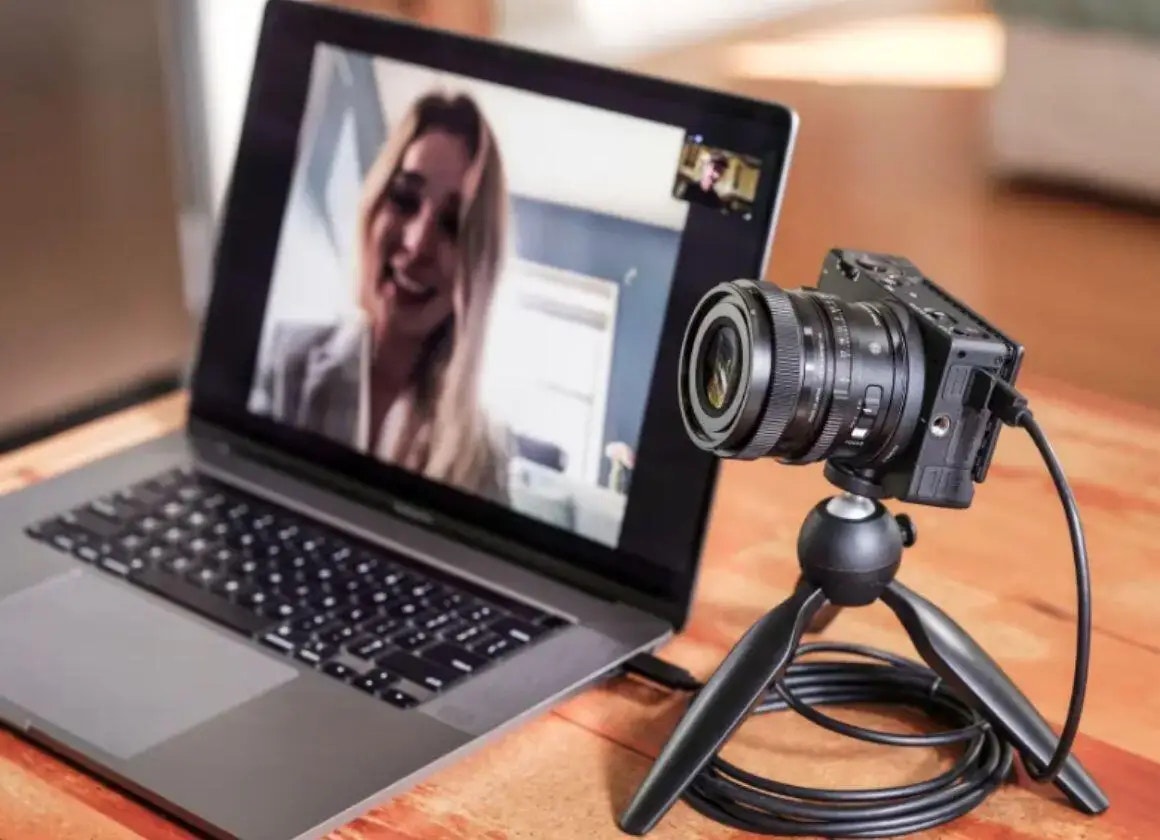

Transforming a Sigma fp to a webcam with just a USB cable.

By simply connecting it to a PC via USB, a Sigma fp camera can be used as a webcam. It will bring a stunning, full-frame image quality to live streaming and online communication including video conferencing.

Your tough companion. Wherever you go.

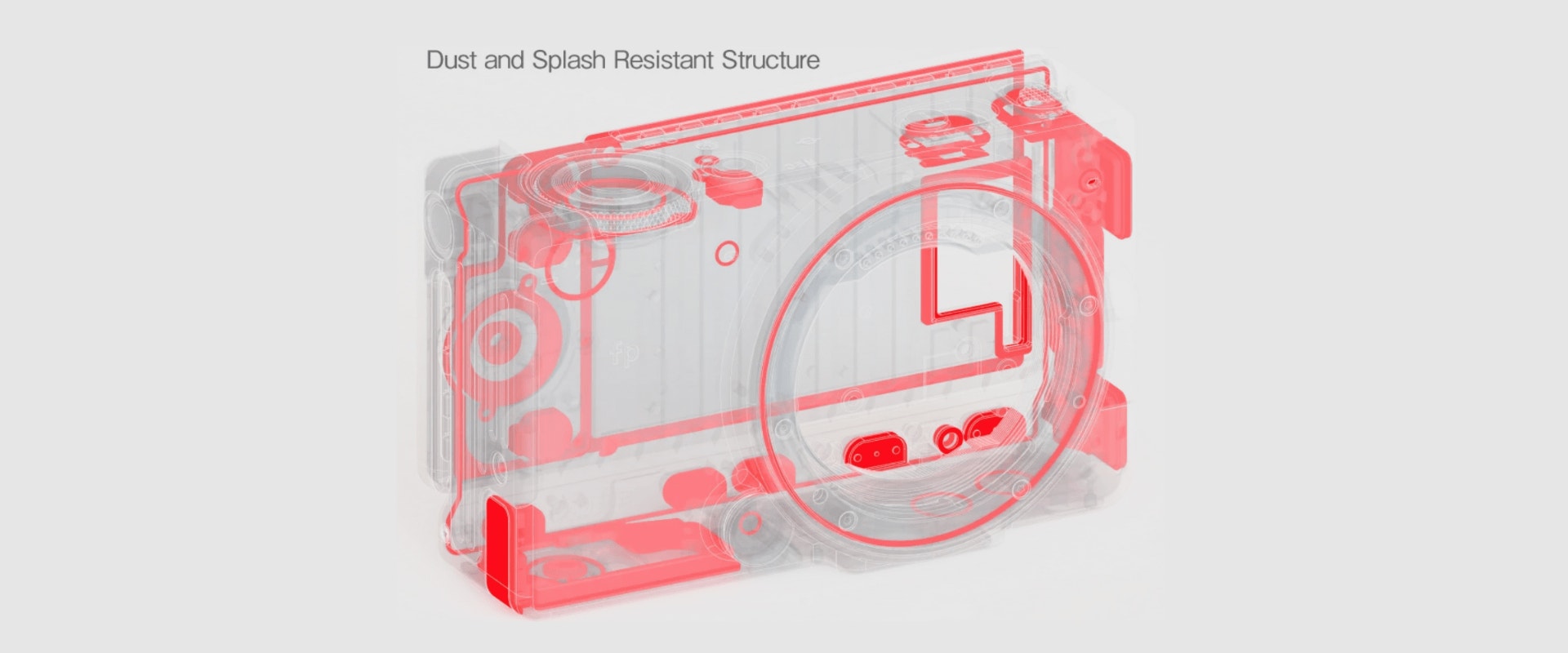

Dust and Splash Resistant Structure* / Large Heat Sink

A body covered with die-cast aluminum on the front and the back ensures superior robustness and heat dissipation while keeping the body weight light.
The Sigma fp series is protected with the dust and splash resistant sealing on a total of 42 points over the camera body. Combined with a large-size magnesium heat sink that prevents overheating, the Sigma fp series is a reliable choice for shooting in a wide range of conditions as well as long hours of use.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

See outside the frames.

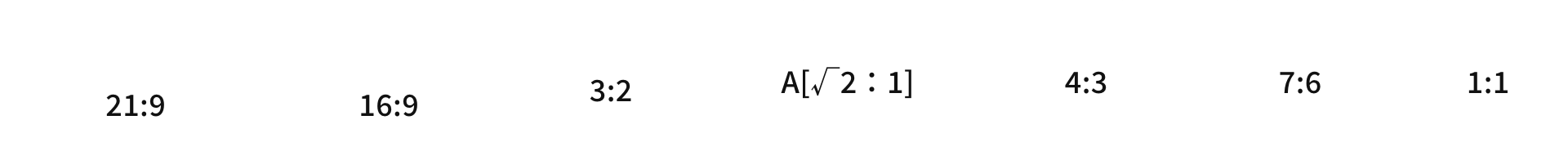

Diverse aspect ratios

In STILL mode, you have seven aspect ratios to choose from. You can either choose one that suits your mood and preference, or try out one that you don’t normally use to discover a new framing and style. The Sigma fp series’ diverse aspect ratio will bring you possibilities to experience something that may change the way you see things.

Find your own expression

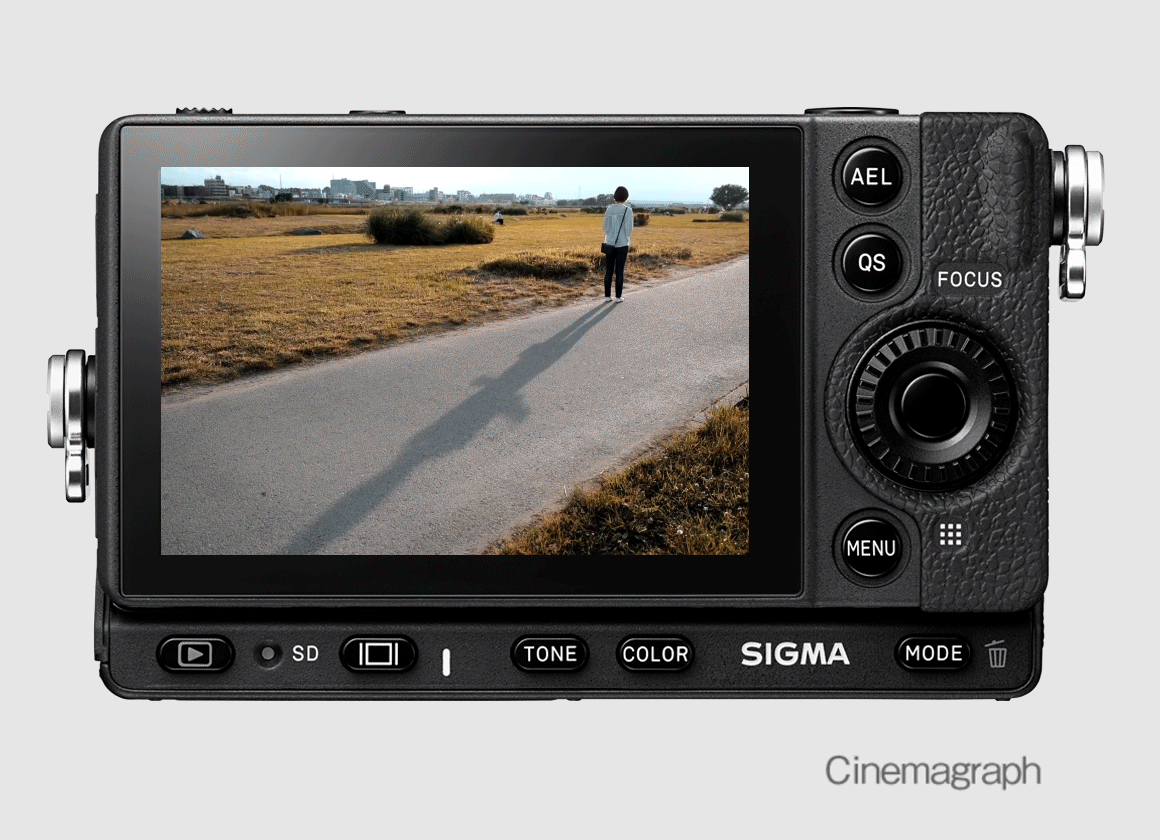

Cinemagraph / Fill Light / Color mode

In addition to a total of 15 color modes to choose from, the Sigma fp series features a number of functionalities such as Cinemagraph, which is animated GIF that is a hybrid between photography and video, and Fill Light, which is Sigma’s special light control function. These features specially created for the Sigma fp series will help you find your own style.

A camera that whispers. For enjoying precious moments.

Full-time electronic shutter

Shutter shock, sound, and lags: these are disadvantages of mechanical shutters. The Sigma fp series is designed to minimize them in pursuit of a system to adapt to a variety of different shooting scenes. Shooting that requires precision where even the tiniest shake is to be eliminated; shooting in a sound-sensitive situation; shooting without ruining the ambience of the scene; and shooting with good response without missing the perfect shot. These types of shooting will open new horizons in video creation. Furthermore, the absence of a mechanical shutter makes the Sigma fp’s camera structure simpler, which in turn improves its reliability as a camera.
