Model no
45N974

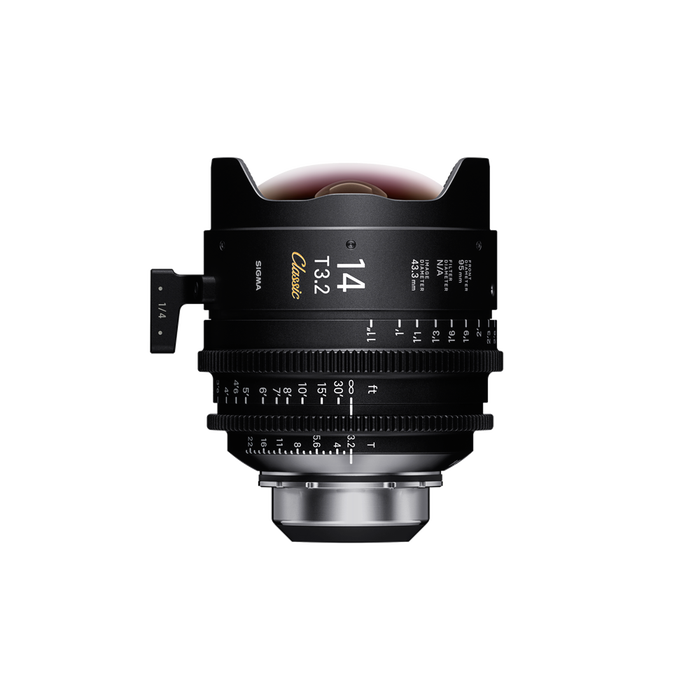

CINE 14MM T3.2 FF PL-MOUNT CLASSIC I/TECHNOLOGY

87 000 SEK

• Available in PL Mount (/i Technology compatible)
• Resolution matching up to 8K
• Standardized essentials: Gear Position, 95mm Front Diameter
• Uncoated lens elements for the classsic look
• Made in Japan

Out of Stock Out of Stock


With cutting-edge technology,
SIGMA's "Classic Art Prime"
offers unrivaled expression for artists.


FF High Speed Prime Line has been offering the highest resolving power in its class, that is compatible with 8K shooting with large format sensors, while achieving outstanding compact design. Based on this product line, the FF Classic Prime Line incorporates more non-coated optical elements to achieve unrivaled expression. It retains the high resolution capability that SIGMA CINE LENS is well known for, and offers a unique combination of low contrast and artistic flare/ghost in the image. As with all other lenses from the FF High Speed Prime Line, it creates beautiful bokeh effects to improve creativity.

FF Classic Prime Line has implemented newly developed coatings on the glass elements and offers consistent T value across the lineup (14mm and 135mm at T3.2 and the rest of the lenses at T2.5). This will greatly contribute to the effective workflow in postproduction. Furthermore, it is compatible with the communication protocol of Cooke “/i Technology”, thus an ideal tool for shooting and editing with the latest technology, such as VFX. A special coating is implemented on the front and rear elements so that the lens durability is ensured as with all other cine lenses from SIGMA.

“Classic Art Prime” is a new solution from SIGMA that is required for the most advanced technology for classical expression. The “look” that FF Classic Prime Line can offer will enable cinematographers to explore new possibilities in movie creation.

The highest quality, in every detail. "Aizu-nuri" featured
SIGMA always pursues “the best materials and technology” without compromise to achieve the highest quality. The Classic Art Prime series is no exception, and the policy is even alive in the logo. To identify the lens in the shooting scene using a wide variety of lenses, and to provide the texture and quality suitable for professional tools, and the durability to support the harsh environment of cinema lenses. Aizu-nuri (Aizu lacquering) was the solution for the “Classic” logo. Fortunately the best technique was at our production site, Aizu.

Specifications
More Information
MountPL / PL-I
Focal lenght14mm
Aperture (T)T3.2 - T25
Number of diaphragm blades9 (Rounded diaphragm)
Minimum Focusing Distance0.27m *1
Front diameter95mm
Filter diametern/a
Lenght111.5mm *2
Weight (g)1400g *3
FF104.3° *4
S3582.6° *5
APS-C80.5° *6
Edition number017 * 7
EAN085126937676
Supplied AccessoriesFront Cap LC950-02, Rear cap LCR II, Lens Support Foot SF-41

*1 Close focus distance is measured from the image plane
*2 Front to EF mount flange
*3 Without lens support foot
*4 Horizontal angle of view for a full-frame camera aperture (aspect ratio 1:1.5, dimensions 36mm × 24mm / 1.42″ × 0.94″)
*5 Horizontal angle of view for a super 35 digital cinema camera aperture (aspect ratio 1:1.8, dimensions 24.6mm × 13.8mm / 0.97″ × 0.54″)
*6 Horizontal angle of view for an APS-C camera aperture (aspect ratio 1:1.5, dimensions 23.7mm × 15.7mm / 0.93″ × 0.62″) The specifications are subject to change without notice.
*7 The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

【Common specifications】
・Lens Mount: PL Mount (/i Technology compatible)
・Image Circle: FF 43.3mm
・Illumination Circle Diameter: over 46.3mm
・Front Diameter: 95 mm / 3.7″
・Focus Ring: Marked in feet
・Number of Diaphragm Blades: 9 (Rounded diaphragm)

Lens Construction
Geometrical MTF Chart
Diffraction MTF Chart
