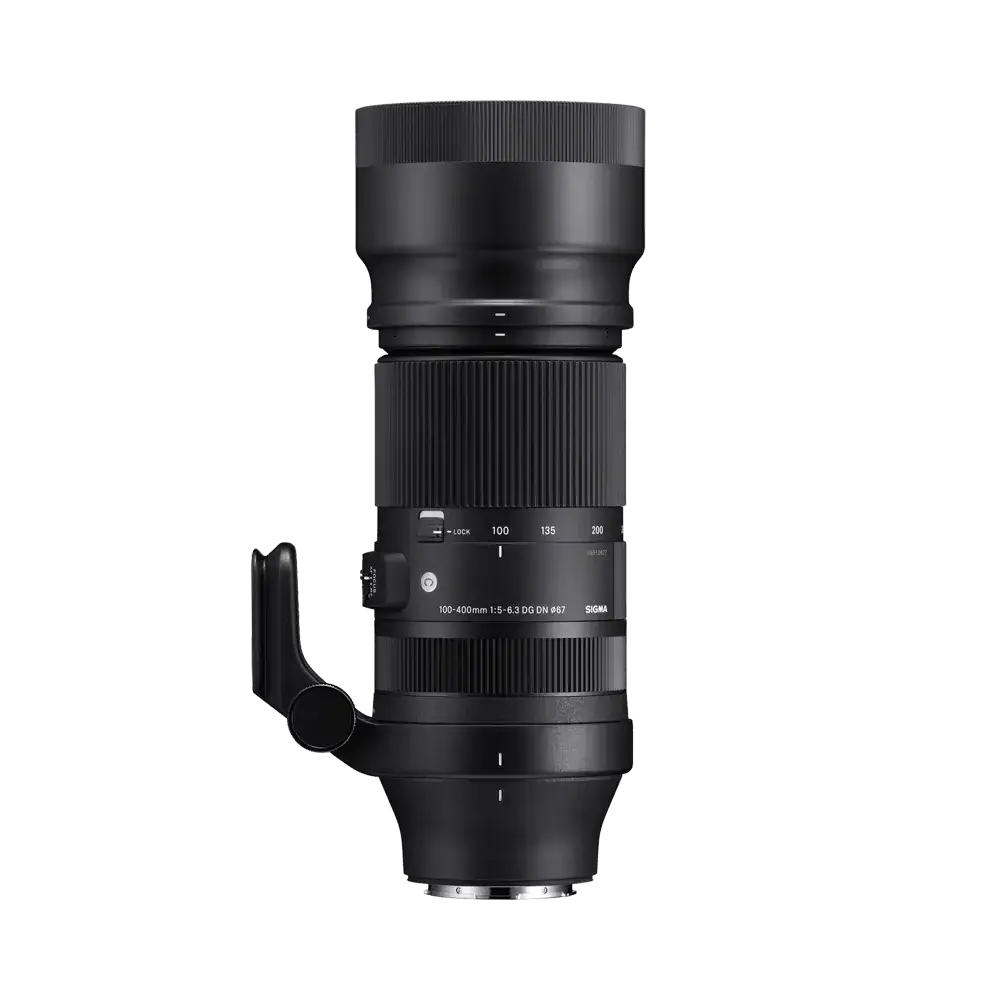

100-400mm F5-6.3
DG DN OS

For full-frame mirrorless cameras

100-400mm F5-6.3 DG OS HSM | Contemporary   (DSLR model)

The lens construction of the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary comprises 16 groups and 22 elements, with one FLD and four SLDs used for the effective correction of aberrations and distortions. Built on the latest optical design technology and optimized for mirrorless systems, the new lens ensures the same high-resolution image quality all the way to the edges. In addition, it constantly achieves high levels of optical performance and makes the most of its capabilities as a zoom lens in any condition, at every focal length from wide to telephoto, and from close-up shots to telephoto photography.

MTF chart

Furthermore, when paired with Sigma TELE CONVERTER TC-1411/TC-2011 (sold separately / for L-Mount only), which was newly and exclusively developed for the use with mirrorless cameras, the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary gives photographers a “super telephoto” angle of view with a focal length of up to 800mm while they enjoy the benefit of the compact system. Plus, AF is effective even with the teleconverter attached.

Sigma TELE CONVERTER TC-1411 / TC-2011

In addition to a high-speed and smooth AF enabled by the stepping motor optimized to the latest algorithm, the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary incorporates powerful image stabilization (OS) of four steps* built into the lens. When combined with a camera body with image stabilization built in, the lens corrects for pitch and yaw axis rotations, providing even more powerful image stabilization.

* Based on CIPA guidelines (Measured in 400mm with a 35mm full-size image sensor)

It also features the 1. AFL button to which the user may assign select functions on the camera side, and the focus limiter switch that allows optimizing the AF range according to the purpose of shooting, 2. Zoom lock switch that fixes the zoom ring at thewidest end, preventing it from rotating and causing the lens barrel to extendunder its own weight during transportation, 3. OS Switch which the user may switch between Mode 1 for general photography and Mode 2 for motor sports and other applications requiring panning.

The switches have optimized for L-Mount / Sony E-Mount and as well FUJIFILM X Mount*.
*The “AF Function Setting Switch” allows the user to select a function while the AF Function Button is pressed on the lens side.

L-Mount / Sony E-mount

By connecting the lens to Sigma USB DOCK (sold separately / for L-Mount only), which was newly developed exclusively for the use with mirrorless cameras, users can adjust the amount of focus movement when operating the focus ring on exclusive Sigma Optimization Pro software, which allows users to adjust focus in their preferred timing in MF mode.

The Sigma 100-400mm F5-6.3 DG DN OS | Contemporary supports straight zoom, which allows photographers to zoom in and out by adjusting the hood, enabling intuitive and quick view angle adjustments. It features a “Dual action zoom” which supports both straight zoom and ring zoom.

Sigma designed a light and durable ultra-telephoto zoom lens addition to its Contemporary line.
The Sigma 100-400mm F5-6.3 DG DN OS | Contemporary packs functionalities required for angles of view corresponding to focal lengths of 100-400mm in a compact, lightweight body. It is not merely about weight reduction, but the lens is durable, with careful selections to utilize the right materials in the right place. For instance, magnesium alloy is used for the part where a tripod socket is attached, which needs to be very strong.

To allow for a paring with camera bodies of different sizes, a tripod socket (sold separately) is available. As this helps reduce any strain on the camera body, photographers can shoot long hours without worrying about it. The tripod socket comes with a strap which also helps reduce strain on the mount when carrying the lens around or during transportation

The mount features a special sealing to make the lens an excellent choice in a wide variety of conditions.

The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

Note:
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’(AUTO).
